Quickstart

Get started with Kubeflow Pipelines

This tutorial helps you get started with deploying a KFP standalone instance, using KFP dashboard, and creating a pipeline with the KFP SDK.

Before you begin, you need the following prerequisites:

  • An existing Kubernetes cluster: If you don’t have a Kubernetes cluster, see Installation for instructions about how to get one.

  • The kubectl command-line tool: Install and configure your kubectl context to connect with your cluster.

After you complete the prerequisites, click each section to view the instructions:

Deploy a KFP standalone instance into your cluster

This step demonstrates how to deploy a KFP standalone instance into an existing Kubernetes cluster.

Run the following script after replacing PIPELINE_VERSION with the desired version of KFP (release are listed here):

export PIPELINE_VERSION=2.1.0

kubectl apply -k "github.com/kubeflow/pipelines/manifests/kustomize/cluster-scoped-resources?ref=$PIPELINE_VERSION"
kubectl wait --for condition=established --timeout=60s crd/applications.app.k8s.io
kubectl apply -k "github.com/kubeflow/pipelines/manifests/kustomize/env/dev?ref=$PIPELINE_VERSION"

After you deploy Kubernetes, obtain your KFP endpoint by following these instructions.

Run a basic pipeline using KFP Dashboard and SDK

KFP Dashboard

Kubeflow Pipelines offers a few samples that you can use to try out Kubeflow Pipelines quickly. The steps below show you how to run a basic sample that includes some Python operations, but doesn’t include a machine learning (ML) workload:

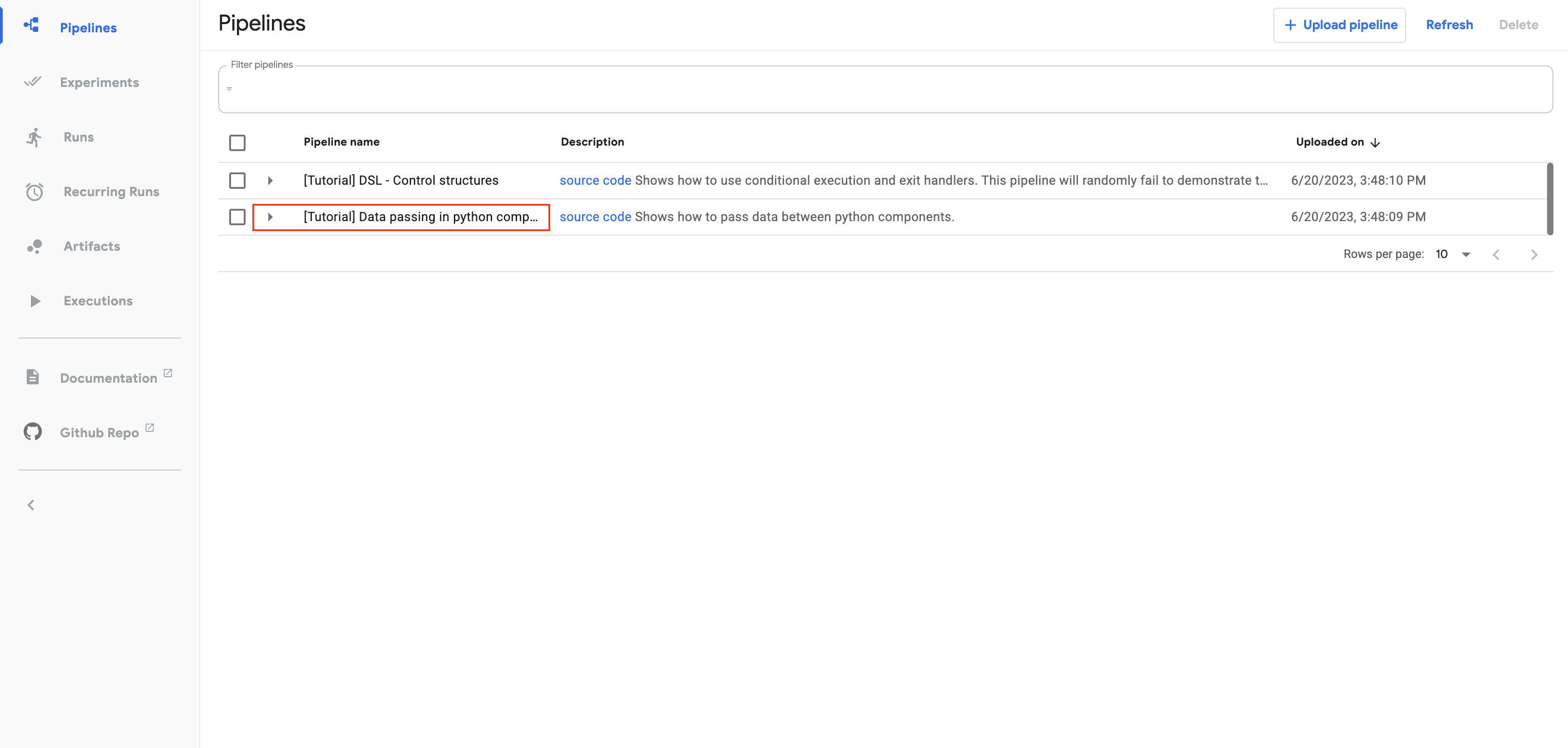

  1. Click the name of the sample, [Tutorial] Data passing in python components, on the pipelines UI: Pipelines UI

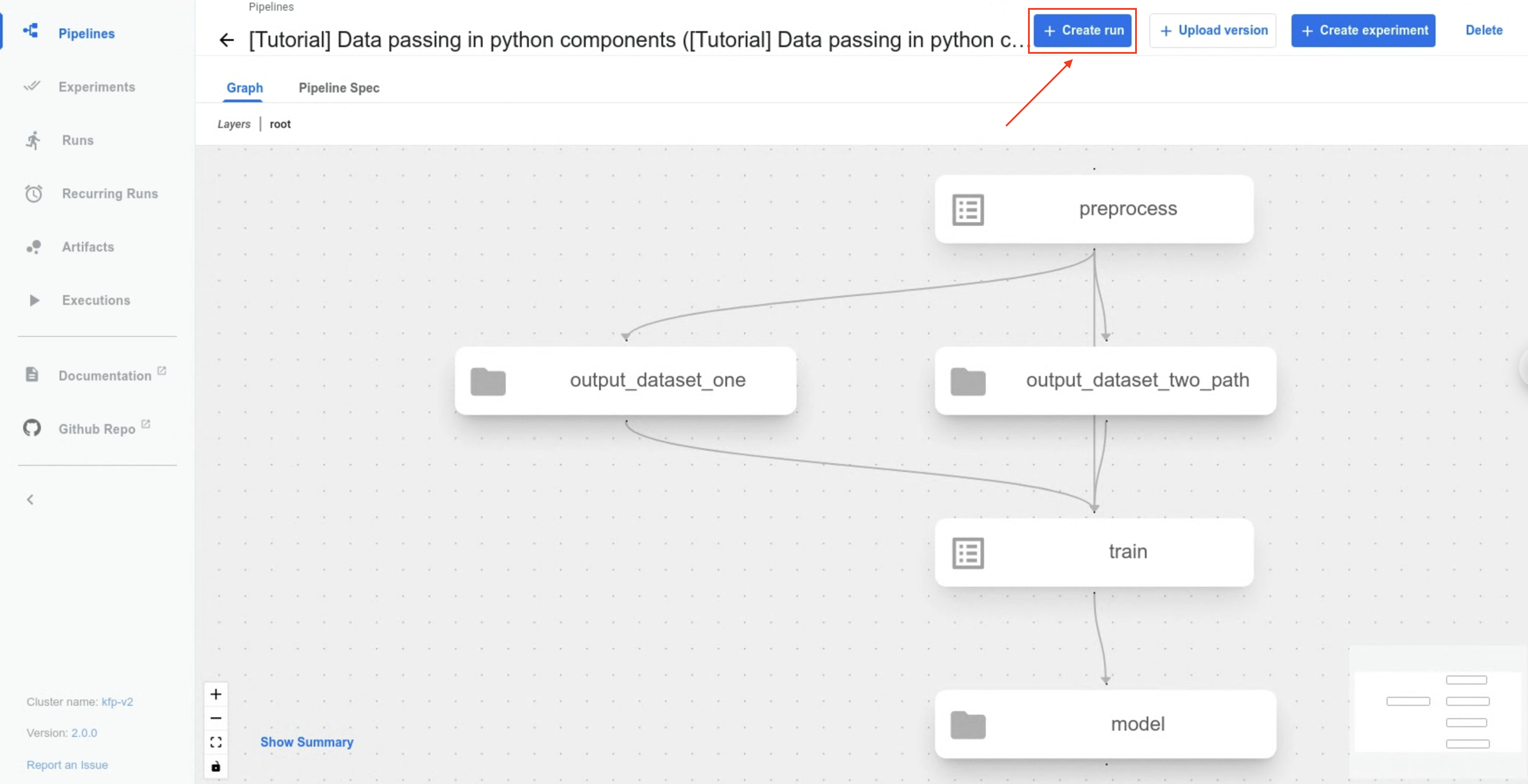

  2. Click Create run: Creating a run on the pipelines UI

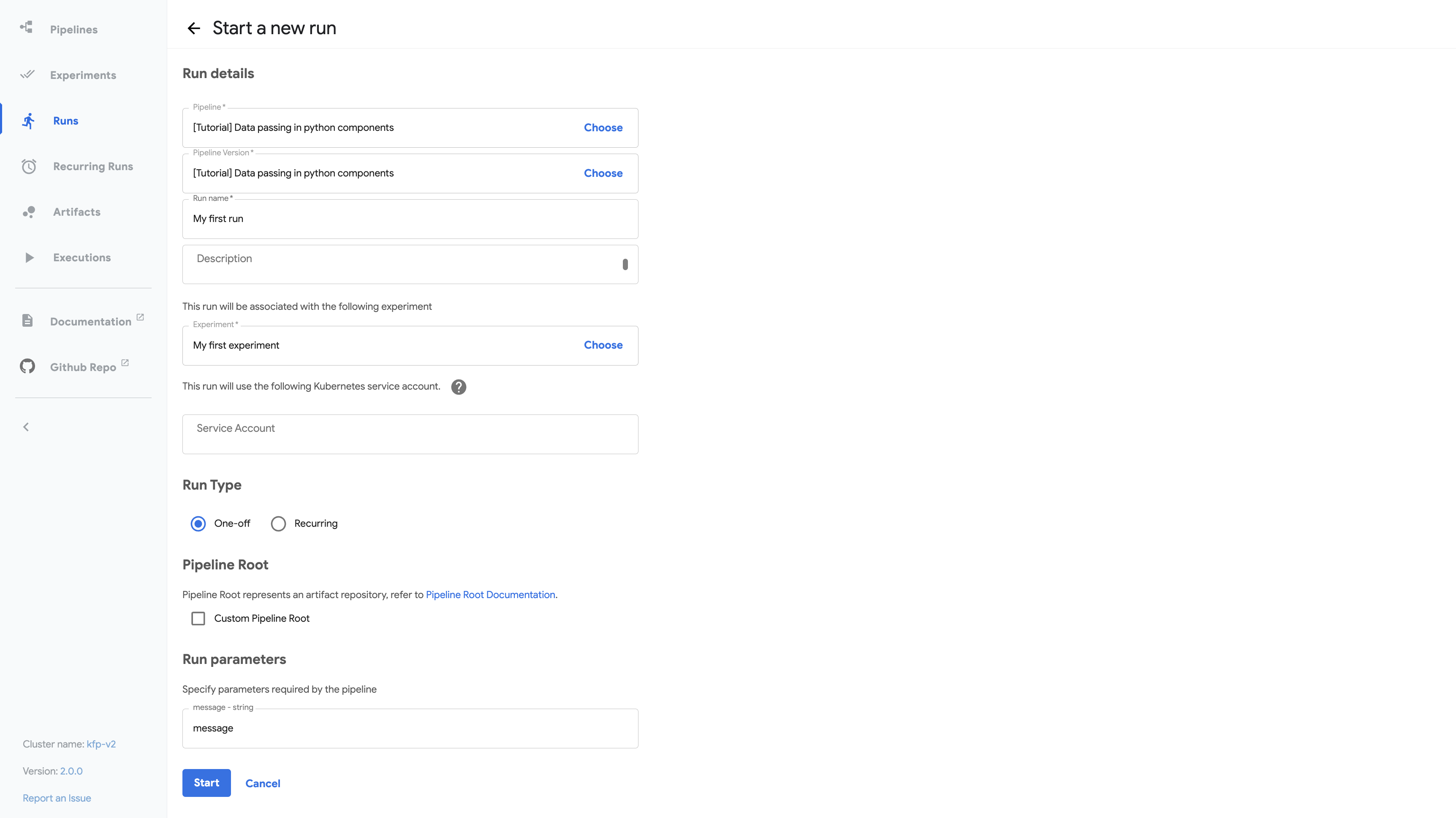

  3. Follow the prompts to create a run. The sample supplies default values for all the parameters you need. The following screenshot assumes you are now creating a run named My first run: Details page of creating a run on the pipelines UI

  4. Click Start to run the pipeline.

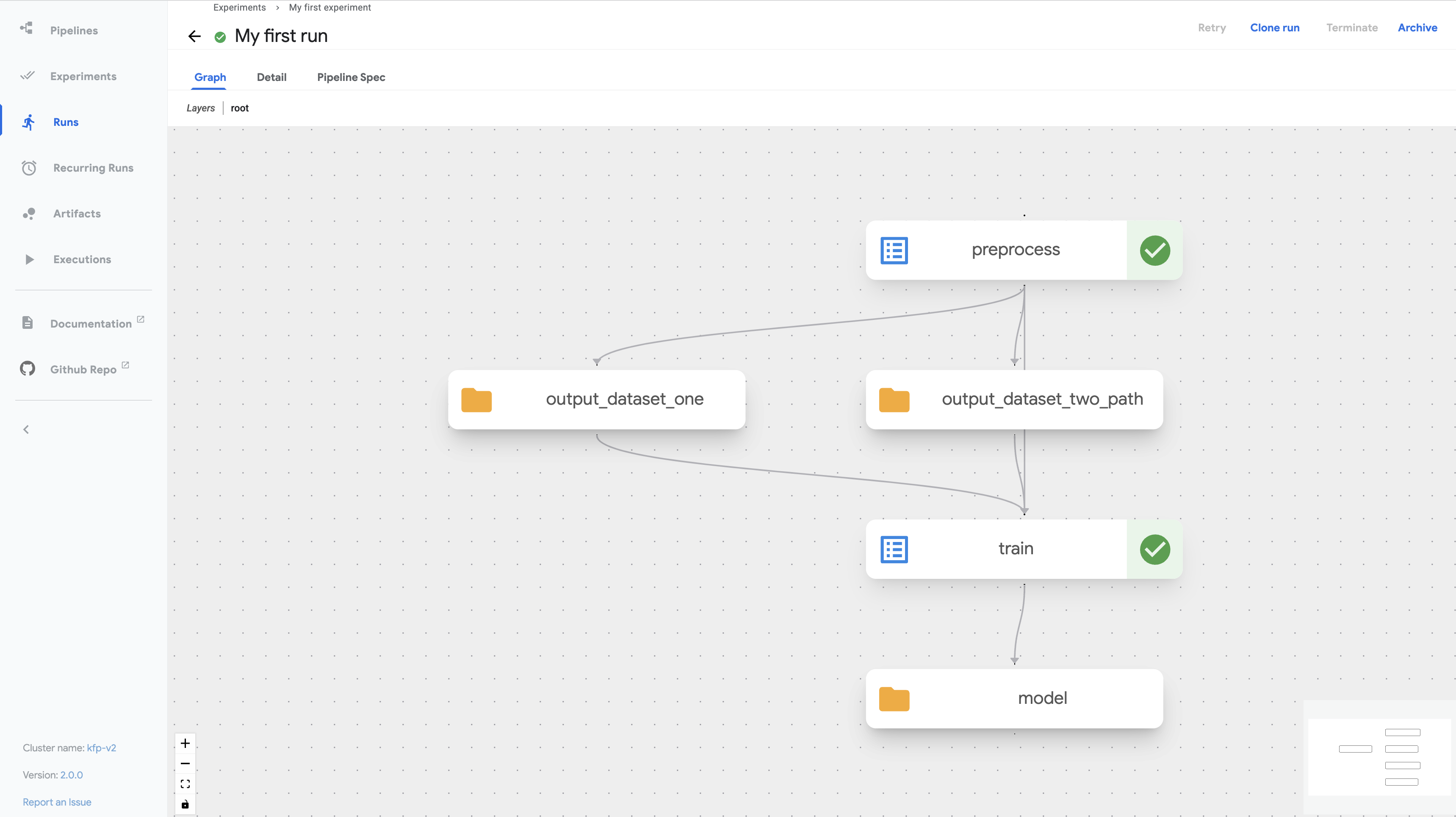

  5. Explore the graph and other aspects of your run by clicking on the nodes (components) of the graph and the other UI elements: Run results on the pipelines UI

You can find the source code for the Data passing in python components tutorial in the Kubeflow Pipelines repo.

KFP SDK

This section shows how to use the KFP SDK to compose a pipeline and submit it for execution by KFP.

  • Run the following script to install the KFP SDK:
    pip install kfp


The following simple pipeline adds two integers, and then adds another integer to the result to come up with a final sum.

from kfp import dsl
from kfp import client


@dsl.component
def addition_component(num1: int, num2: int) -> int:
    return num1 + num2


@dsl.pipeline(name='addition-pipeline')
def my_pipeline(a: int, b: int, c: int = 10):
    add_task_1 = addition_component(num1=a, num2=b)
    add_task_2 = addition_component(num1=add_task_1.output, num2=c)


endpoint = '<KFP_ENDPOINT>'
kfp_client = client.Client(host=endpoint)
run = kfp_client.create_run_from_pipeline_func(
    my_pipeline,
    arguments={
        'a': 1,
        'b': 2
    },
)
url = f'{endpoint}/#/runs/details/{run.run_id}'
print(url)

The above code consists of the following parts:

  • In the first part, the following lines create a Lightweight Python Component by using the @dsl.component decorator:

    @dsl.component
    def addition_component(num1: int, num2: int) -> int:
      return num1 + num2


    The @dsl.component decorator transforms a Python function into a component, which can be used within a pipeline. You are required to specify the type annotations on the parameters as well as the return value, as these inform the KFP executor how to serialize and deserialize the data passed between components. The type annotations and return value also enable the KFP compiler to type check any data that is passed between pipeline tasks.

  • In the second part, the following lines create a pipeline by using the @dsl.pipeline decorator:

    @dsl.pipeline(name='addition-pipeline')
    def my_pipeline(a: int, b: int, c: int = 10):
      ...


    Like the component decorator, the @dsl.pipeline decorator transforms a Python function into a pipeline that can be executed by the KFP backend. The pipeline can have arguments. These arguments also require type annotations. In this example, the argument c has a default value of 10.

  • In the third part, the following lines connect the components together to form a computational directed acyclic graph (DAG) within the body of the pipeline function:

    add_task_1 = addition_component(num1=a, num2=b)
    add_task_2 = addition_component(num1=add_task_1.output, num2=c)


    This example instantiates two different addition tasks from the same component named addition_component, by passing different arguments to the component function for each task, as follows:

    • The first task accepts pipeline parameters a and b as input arguments.
    • The second task accepts add_task_1.output, which is the output from add_task_1, as the first input argument. The pipeline parameter c is the second input argument.

    You must always pass component arguments as keyword arguments.

  • In the fourth part, the following lines instantiate a KFP client using the endpoint obtained in deployment step and submit the pipeline to the KFP backend with the required pipeline arguments:

    endpoint = '<KFP_ENDPOINT>'
    kfp_client = client.Client(host=endpoint)
    run = kfp_client.create_run_from_pipeline_func(
      my_pipeline,
      arguments={
        'a': 1,
        'b': 2
      },
    )
    url = f'{endpoint}/#/runs/details/{run.run_id}'
    print(url)


    In this example, replace endpoint with the KFP endpoint URL you obtained in deployment step.

    Alternatively, you can compile the pipeline to IR YAML for use at another time:

    from kfp import compiler

    compiler.Compiler().compile(pipeline_func=my_pipeline, package_path='pipeline.yaml')

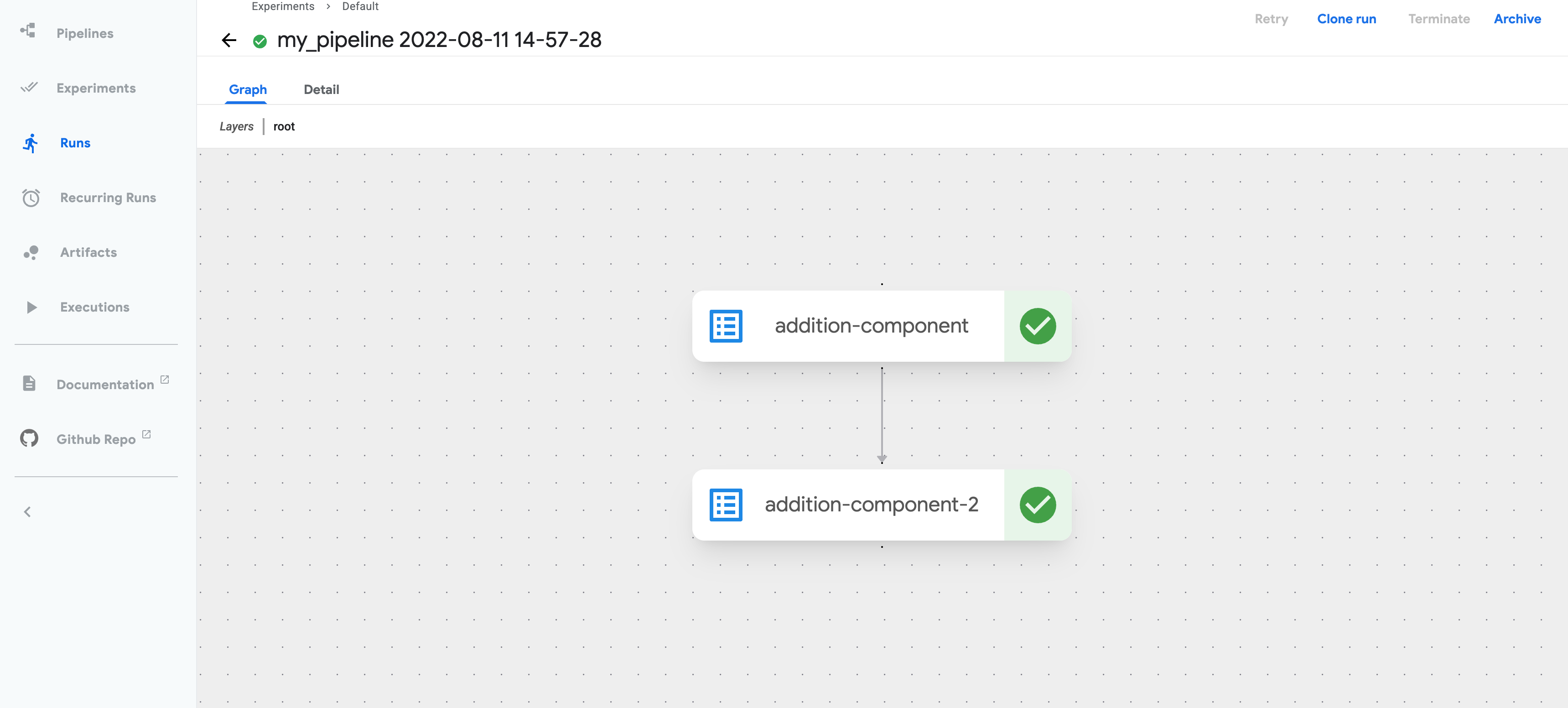

To view the pipeline run on the KFP Dashboard, go to the URL printed above.

To view the details of each task, including input and output, click the appropriate task node.

Pipelines Dashboard

Build a more advanced ML pipeline

This step demonstrates how to build a more advanced machine learning (ML) pipeline that leverages additional KFP pipeline composition features.

The following ML pipeline creates a dataset, normalizes the features of the dataset as a preprocessing step, and trains a simple ML model on the data using different hyperparameters:

from typing import List

from kfp import client
from kfp import dsl
from kfp.dsl import Dataset
from kfp.dsl import Input
from kfp.dsl import Model
from kfp.dsl import Output


@dsl.component(packages_to_install=['pandas==1.3.5'])
def create_dataset(iris_dataset: Output[Dataset]):
    import pandas as pd

    csv_url = 'https://archive.ics.uci.edu/ml/machine-learning-databases/iris/iris.data'
    col_names = [
        'Sepal_Length', 'Sepal_Width', 'Petal_Length', 'Petal_Width', 'Labels'
    ]
    df = pd.read_csv(csv_url, names=col_names)

    with open(iris_dataset.path, 'w') as f:
        df.to_csv(f)


@dsl.component(packages_to_install=['pandas==1.3.5', 'scikit-learn==1.0.2'])
def normalize_dataset(
    input_iris_dataset: Input[Dataset],
    normalized_iris_dataset: Output[Dataset],
    standard_scaler: bool,
    min_max_scaler: bool,
):
    if standard_scaler is min_max_scaler:
        raise ValueError(
            'Exactly one of standard_scaler or min_max_scaler must be True.')

    import pandas as pd
    from sklearn.preprocessing import MinMaxScaler
    from sklearn.preprocessing import StandardScaler

    with open(input_iris_dataset.path) as f:
        df = pd.read_csv(f)
    labels = df.pop('Labels')

    if standard_scaler:
        scaler = StandardScaler()
    if min_max_scaler:
        scaler = MinMaxScaler()

    df = pd.DataFrame(scaler.fit_transform(df))
    df['Labels'] = labels
    with open(normalized_iris_dataset.path, 'w') as f:
        df.to_csv(f)


@dsl.component(packages_to_install=['pandas==1.3.5', 'scikit-learn==1.0.2'])
def train_model(
    normalized_iris_dataset: Input[Dataset],
    model: Output[Model],
    n_neighbors: int,
):
    import pickle

    import pandas as pd
    from sklearn.model_selection import train_test_split
    from sklearn.neighbors import KNeighborsClassifier

    with open(normalized_iris_dataset.path) as f:
        df = pd.read_csv(f)

    y = df.pop('Labels')
    X = df

    X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=0)

    clf = KNeighborsClassifier(n_neighbors=n_neighbors)
    clf.fit(X_train, y_train)
    with open(model.path, 'wb') as f:
        pickle.dump(clf, f)


@dsl.pipeline(name='iris-training-pipeline')
def my_pipeline(
    standard_scaler: bool,
    min_max_scaler: bool,
    neighbors: List[int],
):
    create_dataset_task = create_dataset()

    normalize_dataset_task = normalize_dataset(
        input_iris_dataset=create_dataset_task.outputs['iris_dataset'],
        standard_scaler=True,
        min_max_scaler=False)

    with dsl.ParallelFor(neighbors) as n_neighbors:
        train_model(
            normalized_iris_dataset=normalize_dataset_task
            .outputs['normalized_iris_dataset'],
            n_neighbors=n_neighbors)


endpoint = '<KFP_UI_URL>'
kfp_client = client.Client(host=endpoint)
run = kfp_client.create_run_from_pipeline_func(
    my_pipeline,
    arguments={
        'min_max_scaler': True,
        'standard_scaler': False,
        'neighbors': [3, 6, 9]
    },
)
url = f'{endpoint}/#/runs/details/{run.run_id}'
print(url)

This example introduces the following new features in the pipeline:

  • Some Python packages to install are added at component runtime, using the packages_to_install argument on the @dsl.component decorator, as follows:

    @dsl.component(packages_to_install=['pandas==1.3.5'])

    To use a library after installing it, you must include its import statements within the scope of the component function, so that the library is imported at component runtime.

  • Input and output artifacts of types Dataset and Model are introduced in the component signature to describe the input and output artifacts of the components. This is done using the type annotation generics Input[] and Output[] for input and output artifacts respectively.

    Within the scope of a component, artifacts can be read (for inputs) and written (for outputs) via the .path attribute. The KFP backend ensures that input artifact files are copied to the executing pod’s local file system from the remote storage at runtime, so that the component function can read input artifacts from the local file system. By comparison, output artifact files are copied from the local file system of the pod to remote storage, when the component finishes running. This way, the output artifacts persist outside the pod. In both cases, the component author needs to interact with the local file system only to create persistent artifacts.

    The arguments for the parameters annotated with Output[] are not passed to components by the pipeline author. The KFP backend passes this artifact during component runtime, so that component authors don’t need to be concerned about the path to which the output artifacts are written. After an output artifact is written, the backend executing the component recognizes the KFP artifact types (Dataset or Model), and organizes them on the Dashboard.

    An output artifact can be passed as an input to a downstream component using the .outputs attribute of the source task and the output artifact parameter name, as follows:

    create_dataset_task.outputs['iris_dataset']

  • One of the DSL control flow features, dsl.ParallelFor, is used. It is a context manager that lets pipeline authors create tasks. These tasks execute in parallel in a loop. Using dsl.ParallelFor to iterate over the neighbors pipeline argument lets you execute the train_model component with different arguments and test multiple hyperparameters in one pipeline run. Other control flow features include dsl.Condition and dsl.ExitHandler.

Congratulations! You now have a KFP deployment, an end-to-end ML pipeline, and an introduction to the UI. That’s just the beginning of KFP pipeline and Dashboard features.

Next steps

  • See Installation for additional ways to deploy KFP
  • See Pipelines to learn more about features available when authoring pipelines
